Revese Engineering
Powerful function to reverse mesh from toolpath, reverse upper surface from mesh.
Generate nurbs surface fast and good quality.
Reverse last surface from toolpath |
Import toolpath![](pic/LE_Import_ToolPath.png) |
Reverse mesh from toolpath![](pic/LE_BuildMesh.png) |

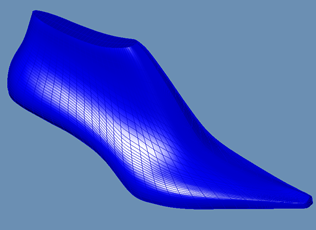

Remove support and reverse surface![](pic/LE_DelSupport_Reverse.png) |
|
Reverse last surface from stl |
Scan data(STL)
![](pic/LE_Revers_ScanMesh1.png) |
Reverse surface
![](pic/LE_Revers_Surface1.png) |
|
|
Reverse last surface from scan foot for orthopaedic or custom made last |
Import scan foot![](pic/LE_Revers_footScan.png) |
Modify exist last to adapt scan foot![](pic/LE_Revers_footMesh.png) |
Reverse surface![](pic/LE_Revers_footSurface.png) |
|
