Purpose

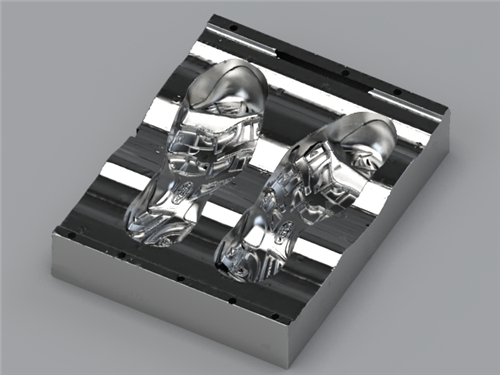

Due to the complex shape of sole part on sport shoes, the cavity of sole mold usually manufactured by casting process and the core of mold was manufactured by CNC machine.

However there are deformation on cavity mold after casting, if not repair this problem then it will affect the assembly of core and cavity, and the final part (sole ) can't keep same thickness with original design.

The purpose of CastingElf is to repair this problem (deformation on cavity) by the special functions of software, instead of huge manpower and time consumption. CastingElf deform the CAD model of core part according to the scanned casting cavity, to make sure all thickness fit to original design and have good assembly.
